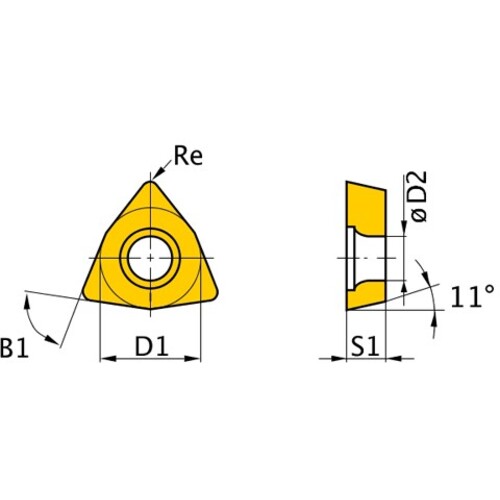

WPMT 21.50.5 MV VP15TF, 0.2 mm Corner Radius, 2.38 mm Thick, 6.35 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; Trigon x 6.35 mm IC × 0.2 mm Corner Radius ; VP15TF ; Carbide
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 2.8 mm |
| Application | Medium Cutting | Tool Type | Turning Insert |
| Insert Style | WPMT | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 21.50.5 | Chip Breaker Type | MV |
| Insert Thickness (S) | 2.38 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | Trigon |
| Cutting Edge Material | Carbide | Series/List # | VP15TF |
| Grade | VP15TF |
Product Features
| Country of Origin | Japan |
