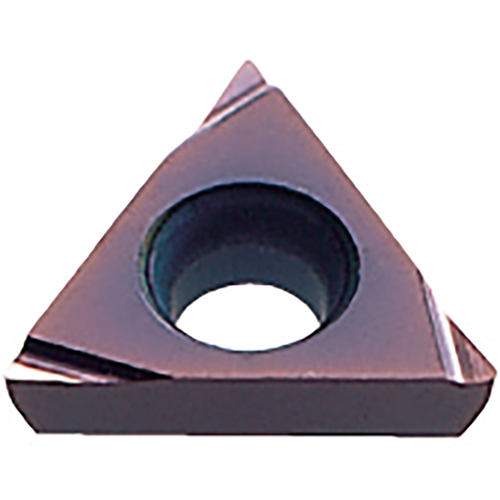

TPGH 220.5 R-FS VP15TF, 0.2 mm Corner Radius, 3.18 mm Thick, 6.35 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; Triangle x 6.35 mm IC × 0.2 mm Corner Radius ; VP15TF ; Carbide
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 3.4 mm |
| Application | Finish Cutting | Tool Type | Turning Insert |
| Insert Style | TPGH | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Right Hand |
| Insert Size | 220.5 | Chip Breaker Type | R-FS |
| Insert Thickness (S) | 3.18 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | Triangle |
| Cutting Edge Material | Carbide | Series/List # | VP15TF |
| Grade | VP15TF | Cutting Edge Effective Length (LE) | 4.2 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.4000
