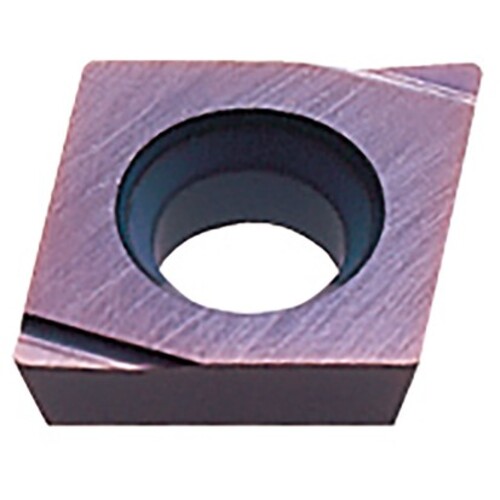

CPMH 321 R-F VP15TF, 0.4 mm Corner Radius, 3.18 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Rhombic × 9.525 mm IC × 0.4 mm Corner Radius ; VP15TF ; Carbide
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 4.5 mm |
| Application | Finish Cutting | Tool Type | Turning Insert |
| Insert Style | CPMH | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Right Hand |
| Insert Size | 321 | Chip Breaker Type | R-F |
| Insert Thickness (S) | 3.18 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Rhombic |
| Cutting Edge Material | Carbide | Series/List # | VP15TF |
| Grade | VP15TF | Cutting Depth Maximum (CDX) | 1.4 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.4000
