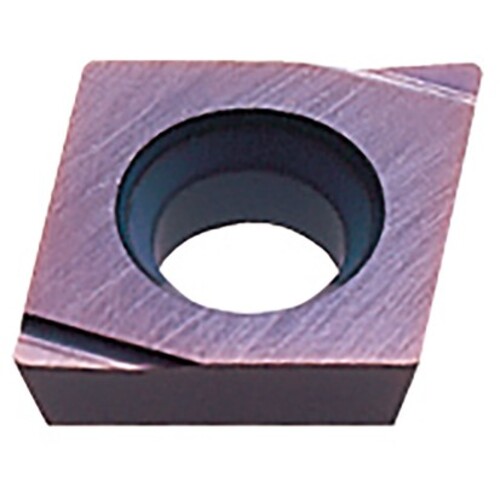

CPMH 2.51.51 L-F VP15TF, 0.4 mm Corner Radius, 2.38 mm Thick, 7.94 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Rhombic × 7.94 mm IC × 0.4 mm Corner Radius ; VP15TF ; Carbide
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 3.5 mm |
| Application | Finish Cutting | Tool Type | Turning Insert |
| Insert Style | CPMH | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Left Hand |
| Insert Size | 2.51.51 | Chip Breaker Type | L-F |
| Insert Thickness (S) | 2.38 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 7.94 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Rhombic |
| Cutting Edge Material | Carbide | Series/List # | VP15TF |
| Grade | VP15TF | Cutting Depth Maximum (CDX) | 1 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.4000
