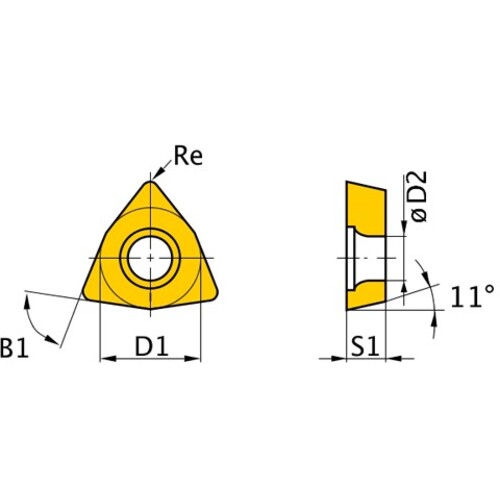

WPMT 21.51 MV NX3035, 0.4 mm Corner Radius, 2.38 mm Thick, 6.35 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; Trigon x 6.35 mm IC × 0.4 mm Corner Radius ; NX3035 ; Cermet
| Applicable Material | | Steel | | Fixing Hole Diameter (D1) | 2.8 mm |
| Application | Medium Cutting | Tool Type | Turning Insert |
| Insert Style | WPMT | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 21.51 | Chip Breaker Type | MV |
| Insert Thickness (S) | 2.38 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | Trigon |
| Cutting Edge Material | Cermet | Series/List # | NX3035 |
| Grade | NX3035 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.4000
