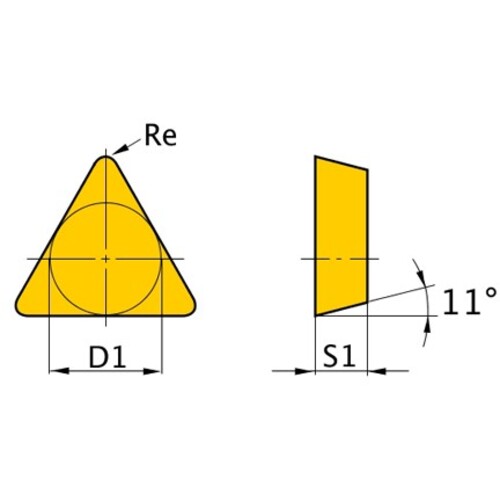

TPMR 322 standard NX3035, 0.8 mm Corner Radius, 3.18 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; Triangle x 9.525 mm IC × 0.8 mm Corner Radius ; NX3035 ; Cermet
| Applicable Material | | Steel | | Grade | NX3035 |
| Application | Medium Cutting | Tool Type | Turning Insert |
| Insert Style | TPMR | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 322 | Chip Breaker Type | standard |
| Insert Thickness (S) | 3.18 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | Triangle |
| Cutting Edge Material | Cermet | Series/List # | NX3035 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
