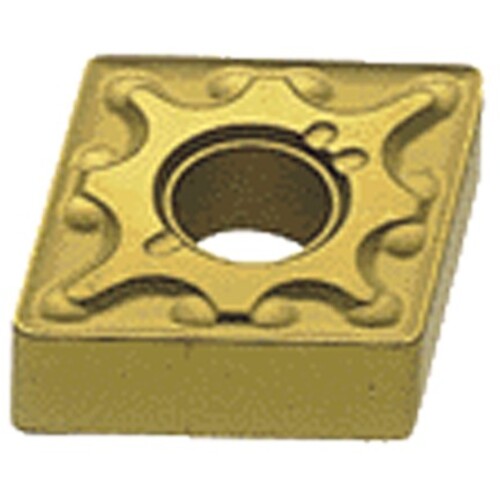

CNMG 542 MA US735, 0.8 mm Corner Radius, 6.35 mm Thick, 15.875 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Rhombic × 15.875 mm IC × 0.8 mm Corner Radius ; US735 ; Carbide
| Applicable Material | | Stainless Steel | | Grade | US735 |
| Application | Medium Cutting | Fixing Hole Diameter (D1) | 6.35 mm |
| Insert Style | CNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 542 | Chip Breaker Type | MA |
| Insert Thickness (S) | 6.35 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 15.875 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Rhombic |
| Cutting Edge Material | Carbide | Series/List # | US735 |
Product Features
| Country of Origin | Japan |
