TCGT 1.210.5 R-F HTi10, 0.2 mm Corner Radius, 1.59 mm Thick, 3.97 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; Triangle x 3.97 mm IC × 0.2 mm Corner Radius ; HTi10 ; Carbide

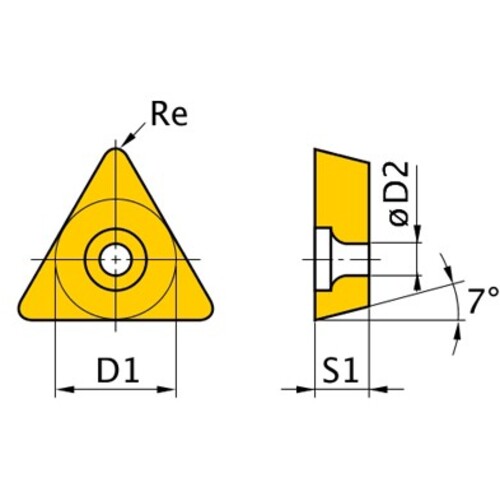

| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 2.3 mm |
| Application | Finish Cutting | Tool Type | Turning Insert |
| Insert Style | TCGT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Right Hand |
| Insert Size | 1.210.5 | Chip Breaker Type | R-F |
| Insert Thickness (S) | 1.59 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3.97 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | Triangle |
| Cutting Edge Material | Carbide | Series/List # | HTi10 |
| Grade | HTi10 | Cutting Edge Effective Length (LE) | 3 mm |
Product Features
| Country of Origin | Japan |
