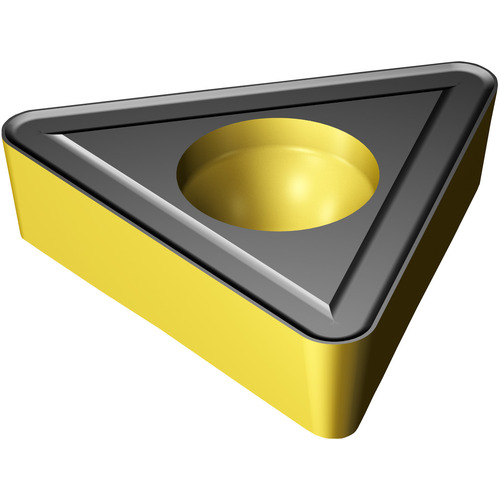

TCMT3252UR 4335 INSERT
Turning Insert; Triangle ; 15.6978 mm Length × 3/8″ IC × 0.032″ Corner Radius ; 4335 ; Carbide ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Steel | | Fixing Hole Diameter (D1) | 0.173″ |
| Insert Style | TCMT | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.032″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 3252 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 15.6978 mm | Chip Breaker Type | UR |
| Insert Thickness (S) | 0.156″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Triangle |
| Coating | | Al2O3 | TiN | TiCN | | Series/List # | TCMT -UR |
| Grade | 4335 | Model No | TCMT3252-UR |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.126
