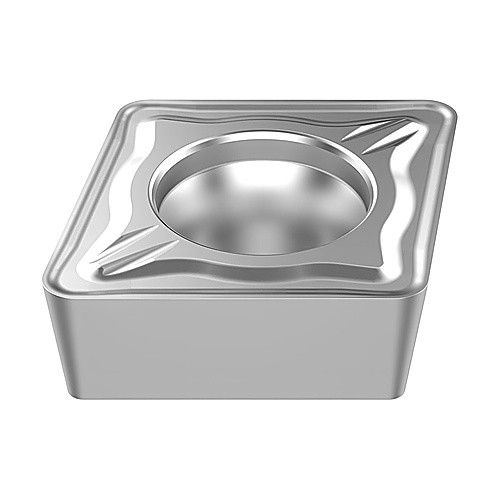

CCMT53.53-M5 TP3501 TURNING INSERT
Turning Insert; CCMT53.53-M5 TP3501 ; 14.9 mm Length ; 15.875 mm IC ; 1.2 mm Corner Radius ; Carbide ; Neutral
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | | Grade | TP3501 |
| Insert Style | CCMT | Fixing Hole Diameter (D1) | 5.6 mm |
| Corner Radius (RE) | 1.2 mm | Tool Type | Turn Positive Insert |
| Insert Size | 160512 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 14.9 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5.56 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 15.875 mm | Chip Breaker Type | M5 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | | TiCN | Al2O3 | Cr | | Shape | 80° Diamond |
Product Features
| Country of Origin | Czech Rep. |
Shipping Info
Package Weight
0.035
