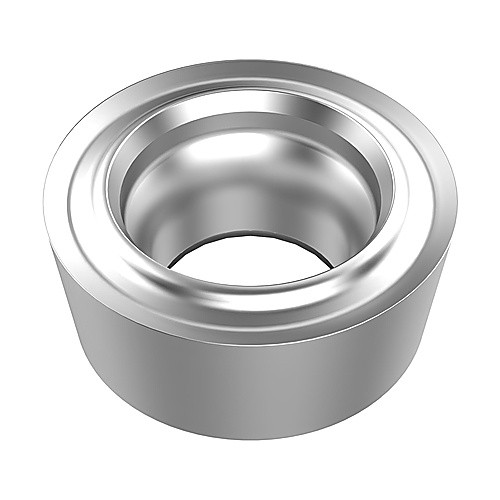

RCMT 0803M0 F1 TP3501, 3.18 mm Thick, 8 mm Inscribed Circle, Round, Turning Indexable Insert
Turning Insert; Round x 8 mm IC ; TP3501
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | | Grade | TP3501 |
| Insert Style | RCMT | Fixing Hole Diameter (D1) | 3.5 mm |
| Corner Radius (RE) | 0.1575″ | Tool Type | Turn Positive Insert |
| Insert Size | 0803M0 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.315″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3.18 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 8 mm | Chip Breaker Type | F1 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | | TiCN | Al2O3 | Cr | | Shape | Round |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
