TCMT432-M3 TP3501
Turning Insert; Triangle ; 20 mm Length × 12.7 mm IC × 0.8 mm Corner Radius ; TP3501 ; Carbide ; | TiCN | Al2O3 | Cr |
Additional Tariff Surcharge of 8 %

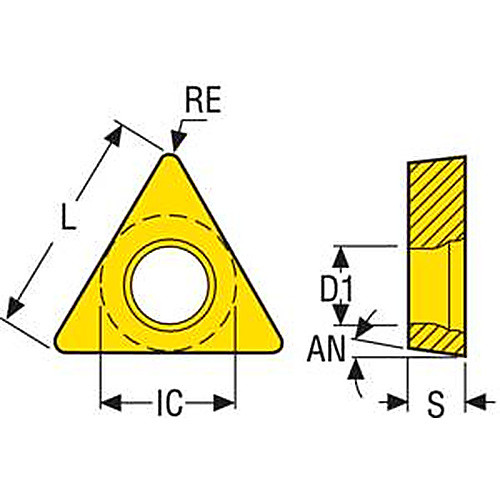

| Applicable Material | | Steel | | Grade | TP3501 |
| Insert Style | TCMT | Fixing Hole Diameter (D1) | 5.6 mm |
| Corner Radius (RE) | 0.8 mm | Tool Type | Turn Positive Insert |
| Insert Size | 432 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 20 mm | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | M3 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | | TiCN | Al2O3 | Cr | | Shape | Triangle |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.022
