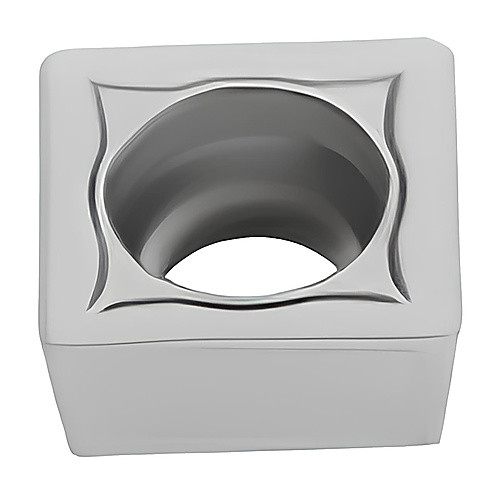

SCMT2.522-M3 TP3501 TURNING INSERT
Turning Insert; SCMT2.522-M3 TP3501 ; 7.1 mm Length ; 7.94 mm IC ; 0.8 mm Corner Radius ; Carbide ; Neutral
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | | Grade | TP3501 |
| Insert Style | SCMT | Fixing Hole Diameter (D1) | 3.5 mm |
| Corner Radius (RE) | 0.8 mm | Tool Type | Turn Positive Insert |
| Insert Size | 70308 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 7.1 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3.18 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 7.94 mm | Chip Breaker Type | M3 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | | TiCN | Al2O3 | Cr | | Shape | Square |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.004
