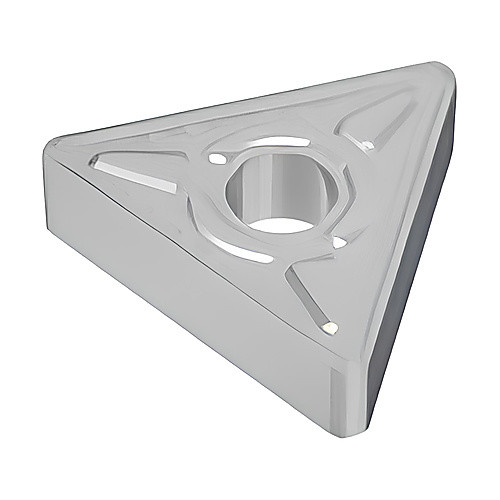

TNMG 544 M6 TP1501, 1.59 mm Corner Radius, 1/4″ Thick, 5/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; TNMG544-M6 TP1501 ; 27.5 mm Length ; 5/8″ IC ; 1.59 mm Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Grade | TP1501 |
| Insert Style | TNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 1.59 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 544 | Number of Cutting Edges | 6 |
| Cutting Edge Length (L) | 27.5 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | M6 |
| Inscribed Circle Diameter (IC) | 5/8″ | Shape | Triangle |
| Cutting Edge Material | Carbide | Series/List # | TNMG 544-Double-sided|G |
| Coating | | TiCN | Al2O3 | Cr | |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.053
