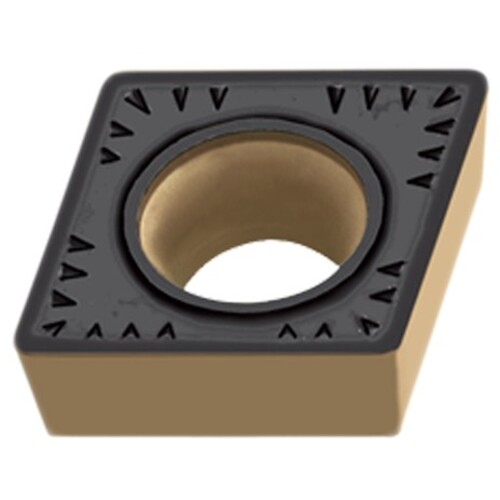

CCMT 3(2.5)2 PM5 WAK20
Turning Insert; 80 Diamond ; 0.3807″ Length × 3/8″ IC × 1/32″ Corner Radius ; WAK20 ; Carbide ; | TiCN | TiN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Grade | WAK20 |
| Insert Style | CCMT | Fixing Hole Diameter (D1) | 0.1732″ |
| Corner Radius (RE) | 1/32″ | Tool Type | Turning Insert |
| Insert Size | 09T308 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.3807″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5/32″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | Single-sided |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
| Coating | | TiCN | TiN | Al2O3 | | Series/List # | CCMT-WAK20 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Length
3.56000
Package Width
1.32000
Package Height
.24000
Package Weight
0.001
