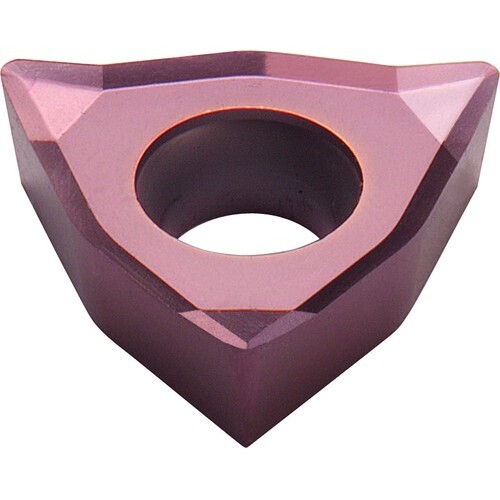

WCGT 06T304 Single-sided WK1, 1/64″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; WCGT3(2.5)1-PM2 WK1 ; 0.2559″ Length ; 3/8″ IC ; 1/64″ Corner Radius
Additional Tariff Surcharge of 8 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | WK1 |
| Insert Style | WCGT | Fixing Hole Diameter (D1) | 0.1732″ |
| Corner Radius (RE) | 1/64″ | Tool Type | Turning Insert |
| Insert Size | 06T304 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.2559″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 5/32″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | Single-sided |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | UNCOATED | Series/List # | WCGT-WK1 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.099
