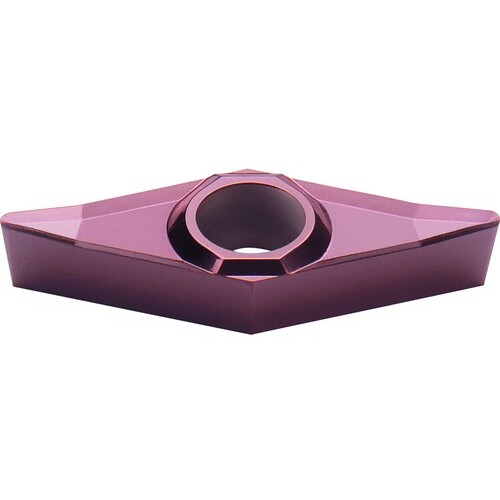

VCGT 110302 Single-sided WXN10, 0.0079″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 35 Diamond ; 7/16″ Length × 1/4″ IC × 0.0079″ Corner Radius ; WXN10 ; Carbide ; TiCN Plus
Additional Tariff Surcharge of 8 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | WXN10 |
| Insert Style | VCGT | Fixing Hole Diameter (D1) | 7/64″ |
| Corner Radius (RE) | 0.0079″ | Tool Type | Turning Insert |
| Insert Size | 110302 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 7/16″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | Single-sided |
| Cutting Edge Material | Carbide | Shape | 35° Diamond |
| Coating | TiCN Plus | Series/List # | VCGT-WXN10 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.086
