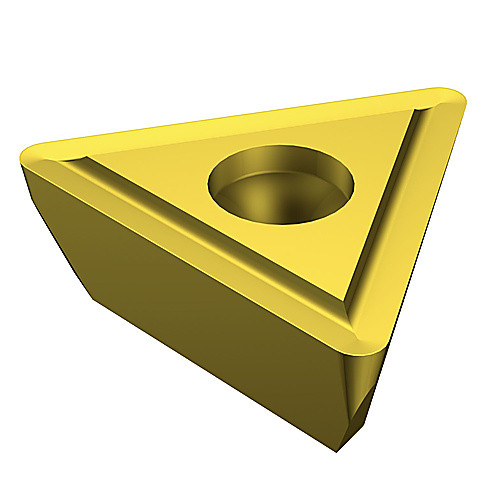

TPMT16 T3 12R-22 1025 T-MAX Insert
Turning Insert; Triangle ; 16.5 mm Length × 9.52 mm IC × 1.19 mm Corner Radius ; 1025 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | TiAlN |
| Insert Style | TPMT | Grade | 1025 |
| Corner Radius (RE) | 1.19 mm | Fixing Hole Diameter (D1) | 3.4 mm |
| Cutting Edge Length (L) | 16.5 mm | Tool Type | Turning Insert |
| Insert Thickness (S) | 3.97 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide | Shape | Triangle |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.01
