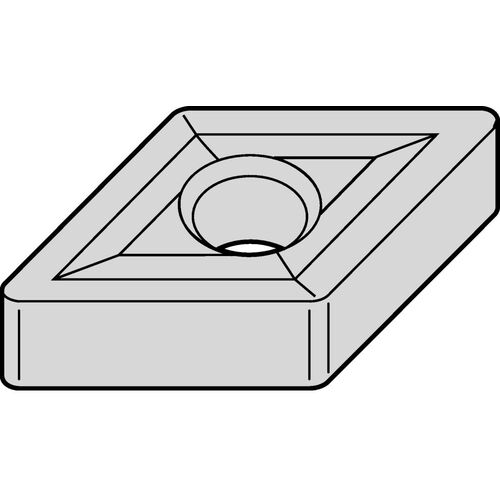

DNGP 431 Hi-Double Positive|P TN10U, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, AlTiN, Turning Indexable Insert
Turning Insert; 55 Diamond ; 0.61″ Length × 1/2″ IC × 1/64″ Corner Radius ; TN10U ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TN10U |
| Insert Style | DNGP | Fixing Hole Diameter (D1) | 0.203″ |
| Corner Radius (RE) | 1/64″ | Tool Type | Turning Insert |
| Insert Size | 431 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.61″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | Hi-Double Positive|P |
| Cutting Edge Material | Carbide | Shape | 55° Diamond |
| Coating | AlTiN |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.031
