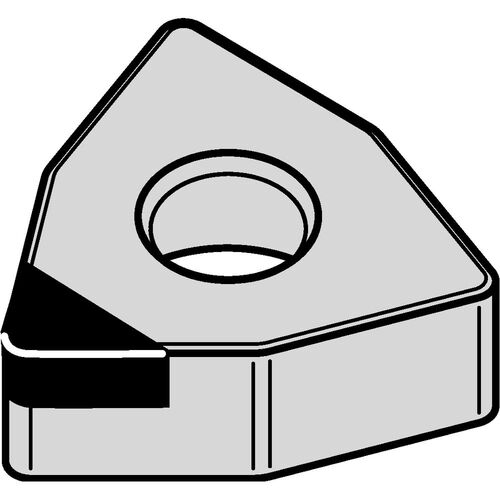

WNGA 432 A|None WDN25U, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Uncoated, Turning Indexable Insert
Turning Insert; WNGA432FST PCD WDN25U ; 0.342″ Length ; 1/2″ IC ; 1/32″ Corner Radius ; PCD ; Neutral ; Uncoated
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | WDN25U |
| Insert Style | WNGA | Fixing Hole Diameter (D1) | 0.203″ |
| Corner Radius (RE) | 1/32″ | Tool Type | Turning Insert |
| Insert Size | 432 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.342″ | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | A|None |
| Cutting Edge Material | PCD | Shape | 80° Trigon |
| Coating | Uncoated |
Product Features
| Country of Origin | Germany |
