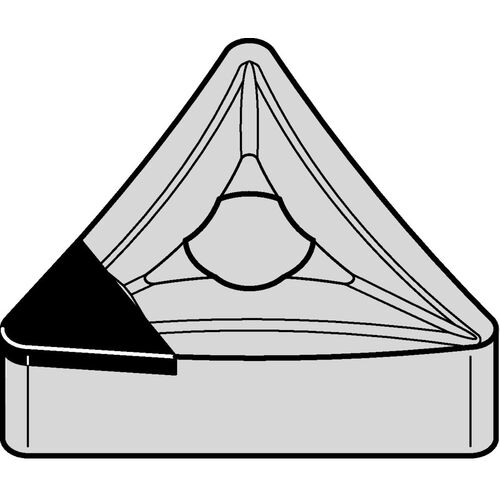

TNMS 331 Hi-Double Positive|S WDN25U, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Uncoated, Turning Indexable Insert
Turning Insert; TNMS331FST PCD WDN25U ; 0.6496″ Length ; 3/8″ IC ; 1/64″ Corner Radius ; PCD ; Neutral ; Uncoated
Additional Tariff Surcharge of 8.5 %
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | WDN25U |
| Insert Style | TNMS | Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 1/64″ | Tool Type | Turning Insert |
| Insert Size | 331 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.65″ | Number of Cutting Edges | 1 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | Hi-Double Positive|S |
| Cutting Edge Material | PCD | Shape | Triangle |
| Coating | Uncoated |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.0161
