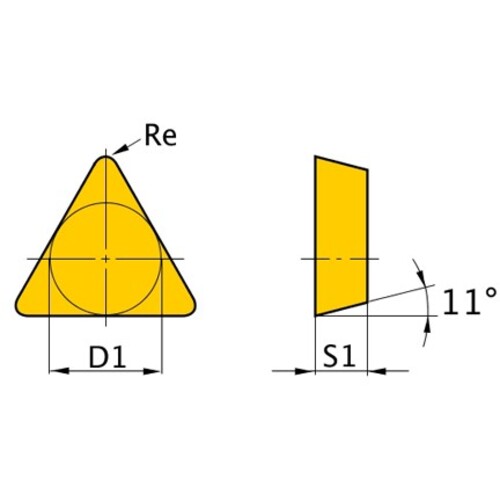

TPGN 321 flat_top UP20M, 0.4 mm Corner Radius, 3.18 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; Triangle x 9.525 mm IC × 0.4 mm Corner Radius ; UP20M ; Carbide
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turning Insert |
| Insert Style | TPGN | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.4 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 321 | Chip Breaker Type | flat_top |
| Insert Thickness (S) | 3.18 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | Triangle |
| Cutting Edge Material | Carbide | Series/List # | UP20M |
| Grade | UP20M |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.4
