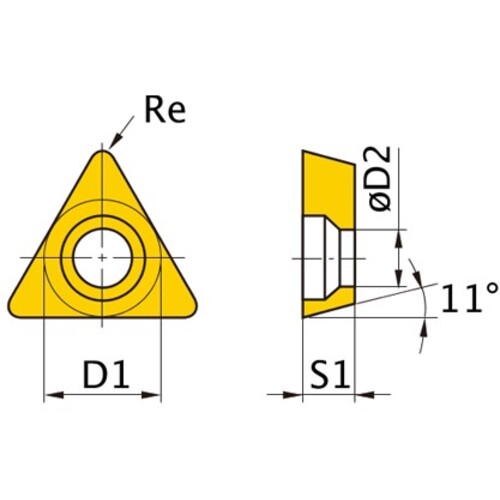

TPGX 1.51.50.5 flat_top UTi20T, 0.2 mm Corner Radius, 2.38 mm Thick, 4.76 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; Triangle x 4.76 mm IC × 0.2 mm Corner Radius ; UTi20T ; Carbide
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Fixing Hole Diameter (D1) | 2.5 mm |
| Insert Style | TPGX | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.2 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 1.51.50.5 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 2.38 mm | Chip Breaker Type | flat_top |
| Inscribed Circle Diameter (IC) | 4.76 mm | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Triangle |
| Grade | UTi20T | Series/List # | UTi20T |
Product Features
| Country of Origin | Japan |
