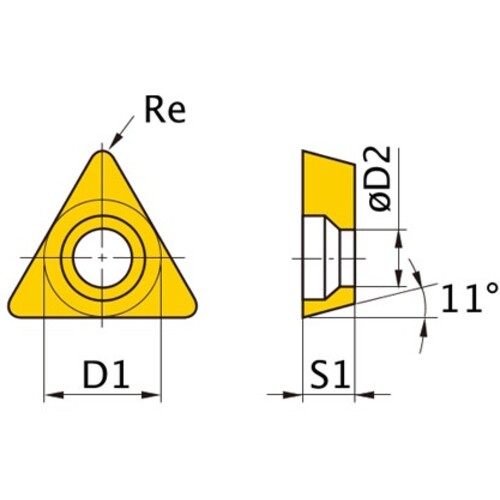

TPGX 221 flat_top HTi10, 0.4 mm Corner Radius, 3.18 mm Thick, 6.35 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; Triangle x 6.35 mm IC × 0.4 mm Corner Radius ; HTi10 ; Carbide
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 3.5 mm |
| Insert Style | TPGX | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.4 mm | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 221 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3.18 mm | Chip Breaker Type | flat_top |
| Inscribed Circle Diameter (IC) | 6.35 mm | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Triangle |
| Grade | HTi10 | Series/List # | HTi10 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.4000
