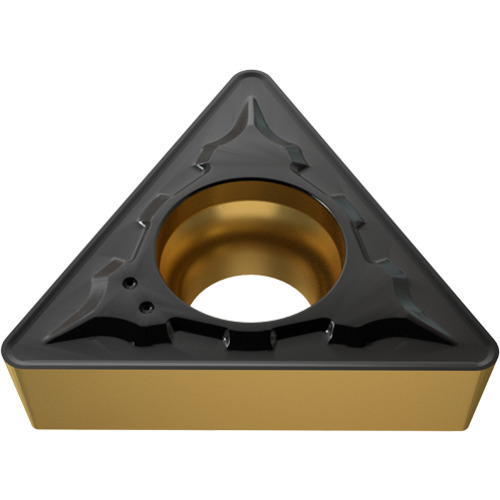

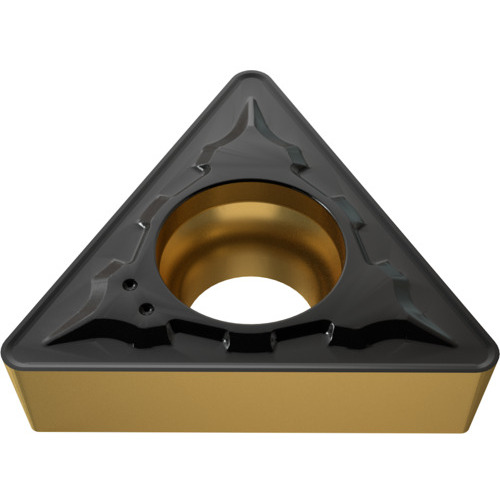

TCMT16T308-UG-YG3030/TCMT32.52-UG
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turning Positive Insert |
| Insert Style | TCMT | Depth of Cut Maximum (APMX) | 4″ |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.614″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | UG |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Triangular |
| Coating | | Al2O3 | TiCN | | Series/List # | TCMT |
| Grade | YG3030 | Cutting Edge Effective Length (LE) | 0.614″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4
Package Width
1.75
Package Height
0.625
Package Weight
0.141
