CNMM-432M-SE KPD001
Turning Insert; Diamond x 12.7 mm IC × 0.79 mm Corner Radius ; KPD001 ; PCD

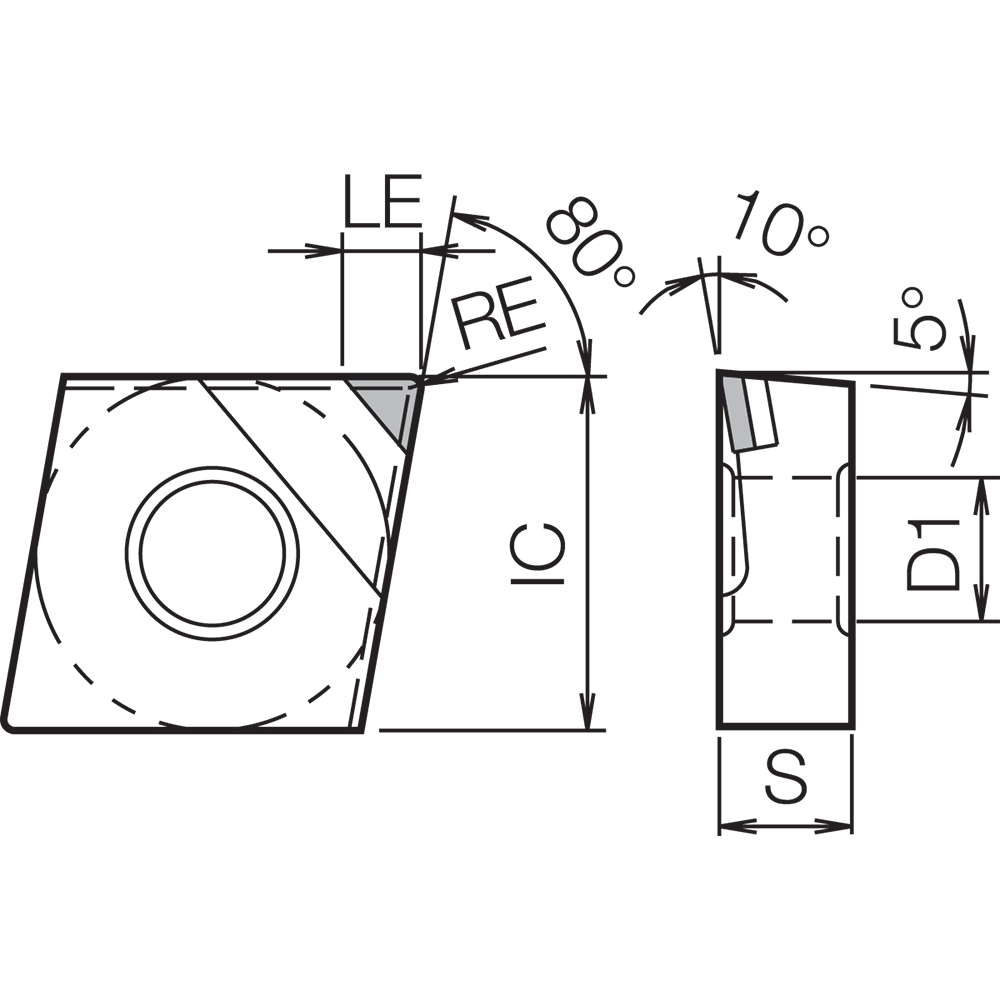

| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | KPD001 |
| Application | External Turning | Facing | Boring | Internal Facing | Fixing Hole Diameter (D1) | 5.16 mm |
| Insert Style | CNMM | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.79 mm | Number of Cutting Edges | 1 |
| Insert Size | 432 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | MSE |
| Inscribed Circle Diameter (IC) | 12.7 mm | Shape | Diamond |
| Cutting Edge Material | PCD |
Product Features
| Family Description | Alternate Manufacture # CNMM432MSEKPD001 | Country of Origin | China |
Shipping Info
Package Weight
.9900
Related Documentation
