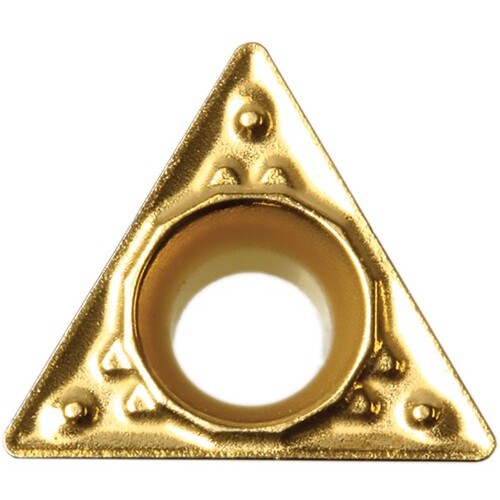

TPMT 321 HQ CA6515, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TiCnulll2O3/TiN, Triangle, Turning Indexable Insert
Turning Insert; Triangle x 3/8″ IC × 1/64″ Corner Radius ; CA6515 ; Carbide ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Stainless Steel | | Grade | CA6515 |
| Application | External Turning | Boring | Internal Facing | Copying | Back Boring | Fixing Hole Diameter (D1) | 0.1732″ |
| Insert Style | TPMT | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 3 |
| Insert Size | 321 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | HQ |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Triangle |
| Cutting Edge Material | Carbide | Series/List # | CA65-Series |
| Coating | | Al2O3 | TiN | TiCN | |
Product Features
| Family Description | Alternate Manufacture # TPMT321HQCA6515 | Country of Origin | Japan |
Shipping Info
Package Length
3.75000
Package Width
1.75000
Package Height
.50000
Package Weight
.0020
