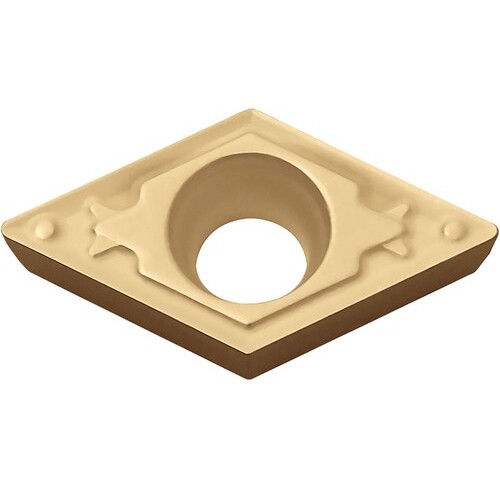

DCMT 3252 HQ CA6515, 1/32″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, TiCnulll2O3/TiN, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/8″ IC × 1/32″ Corner Radius ; CA6515 ; Carbide ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Stainless Steel | | Grade | CA6515 |
| Application | External Turning | Copying | Back Boring | Fixing Hole Diameter (D1) | 0.1732″ |
| Insert Style | DCMT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 2 |
| Insert Size | 3252 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/32″ | Chip Breaker Type | HQ |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Diamond |
| Cutting Edge Material | Carbide | Series/List # | CA65-Series |
| Coating | | Al2O3 | TiN | TiCN | |
Product Features
| Family Description | Alternate Manufacture # DCMT3252HQCA6515 | Country of Origin | Japan |
Shipping Info
Package Weight
0.1
