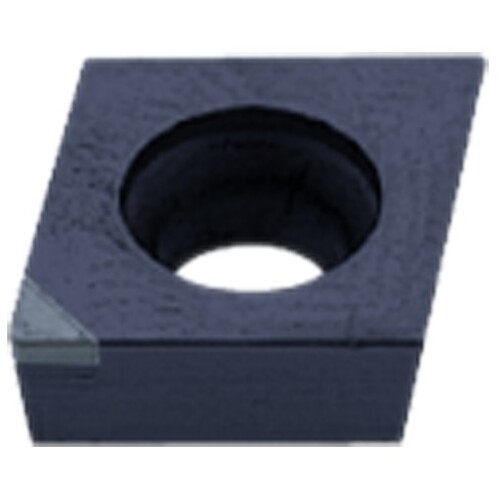

CCGW 03S102 flat_top BC8110, 0.2 mm Corner Radius, 1.39 mm Thick, 3.57 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Rhombic × 3.57 mm IC × 0.2 mm Corner Radius ; BC8110 ; CBN
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 2 mm |
| Application | Finish Cutting | Tool Type | Turning Insert |
| Insert Style | CCGW | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.2 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 03S102 | Chip Breaker Type | flat_top |
| Insert Thickness (S) | 1.39 mm | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 3.57 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 80° Rhombic |
| Cutting Edge Material | CBN | Series/List # | BC8110 |
| Grade | BC8110 | Cutting Edge Effective Length (LE) | 1.1 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
