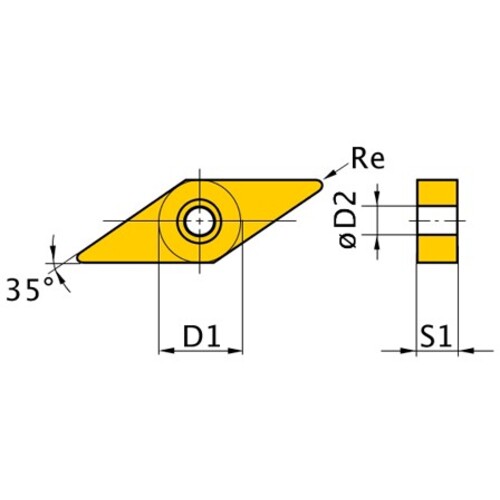

VNGA 333 flat_top BC8110, 1.2 mm Corner Radius, 4.76 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; 35 Rhombic × 9.525 mm IC × 1.2 mm Corner Radius ; BC8110 ; CBN
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 3.81 mm |
| Application | Finish Cutting | Tool Type | Turning Insert |
| Insert Style | VNGA | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 1.2 mm | Chip Breaker Type | flat_top |
| Insert Size | 333 | Quantity | 1 |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.525 mm | Shape | 35° Rhombic |
| Insert Included Angle (EPSR) | 35 Degrees | Series/List # | BC8110 |
| Cutting Edge Material | CBN | Cutting Edge Effective Length (LE) | 1.6 mm |
| Grade | BC8110 |
Product Features
| Country of Origin | Japan |
