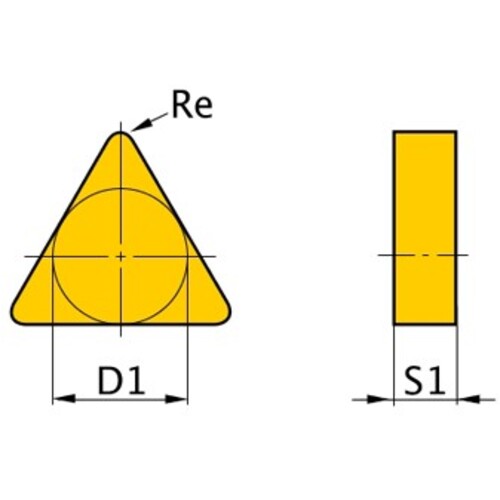

TNGN 332 flat_top MBS140, 0.8 mm Corner Radius, 4.76 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; Triangle x 9.525 mm IC × 0.8 mm Corner Radius ; MBS140 ; CBN
| Applicable Material | | Cast Iron | | Grade | MBS140 |
| Insert Style | TNGN | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 332 | Chip Breaker Type | flat_top |
| Insert Thickness (S) | 4.76 mm | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 60 Degrees | Shape | Triangle |
| Cutting Edge Material | CBN | Series/List # | MBS140 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.4000
