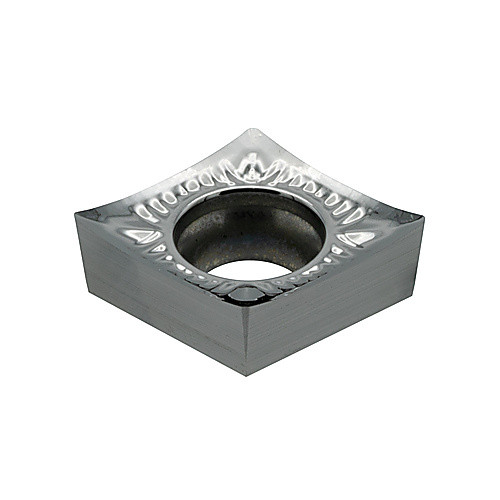

CCGT32.52NAG H1, 0.008″ Corner Radius, 0.016″ Thick, 3/8″ Inscribed Circle, Uncoated, 80 Degree Diamond, Turning Insert
Turning Insert; 80 Diamond × 3/8″ IC × 0.008″ Corner Radius ; H1 ; Carbide ; Uncoated
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | H1 |
| Insert Style | CCGT | Fixing Hole Diameter (D1) | 0.173″ |
| Corner Radius (RE) | 0.008″ | Tool Type | Turning Insert |
| Insert Size | 32.52 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.3819″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.016″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | NAG |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
| Coating | Uncoated |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
