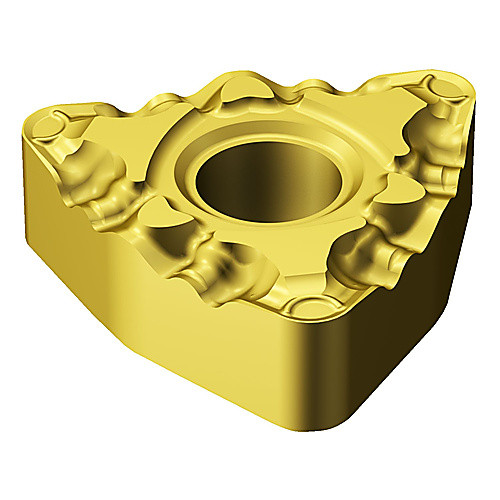

WNMG 331 PF 1525, 0.016″ Corner Radius, 0.187″ Thick, 3/8″ Inscribed Circle, TiCN, Trigon, Turning Indexable Insert
Turning Insert; Trigon x 3/8″ IC × 0.016″ Corner Radius ; 1525 ; Cermet ; TiCN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | | Grade | 1525 |
| Insert Style | WNMG | Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 0.016″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 331 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | PF |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Cutting Edge Material | Cermet | Shape | Trigon |
| Coating | TiCN | Model No | WNMG331-PF |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
.082
