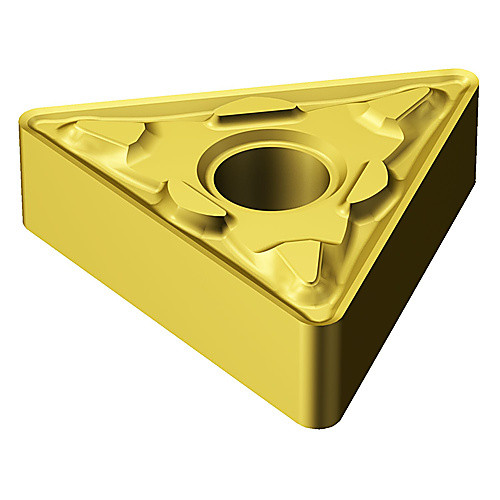

TNMG 433 MM 2025, 0.047″ Corner Radius, 0.187″ Thick, 1/2″ Inscribed Circle, TiCN|Al2O3|TiN, Triangle, Turning Indexable Insert
Turning Insert; Triangle x 1/2″ IC × 0.047″ Corner Radius ; 2025 ; Carbide ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Steel | Stainless Steel | | Fixing Hole Diameter (D1) | 0.203″ |
| Insert Style | TNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.047″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 433 | Chip Breaker Type | MM |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | Triangle |
| Cutting Edge Material | Carbide | Series/List # | TNMG 433-MM |
| Coating | | Al2O3 | TiN | TiCN | | Model No | TNMG433-MM |
| Grade | 2025 |
Product Features
| Family Description | 0 | Country of Origin | USA |
Shipping Info
Package Length
5.00000
Package Width
2.50000
Package Height
.50000
Package Weight
0.34
