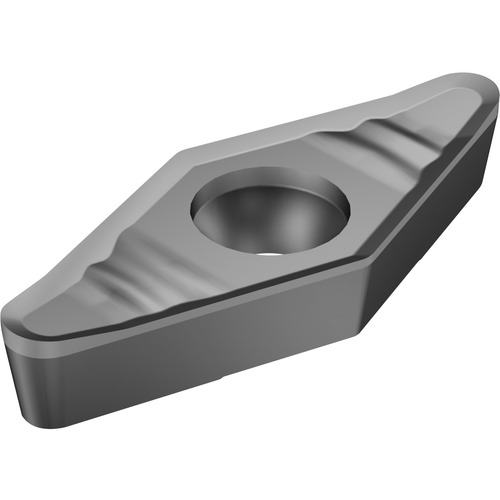

VCGX 332 AL H10, 0.032″ Corner Radius, 0.187″ Thick, 3/8″ Inscribed Circle, Uncoated, Turning Indexable Insert
Turning Insert; 35 Diamond × 3/8″ IC × 0.032″ Corner Radius ; H10 ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.173″ |
| Insert Style | VCGX | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.032″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 332 | Chip Breaker Type | AL |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | 35° Diamond |
| Cutting Edge Material | Carbide | Series/List # | VCGX 332-AL |
| Coating | Uncoated | Model No | VCGX332-AL |
| Grade | H10 |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Length
1.10000
Package Width
.40000
Package Height
.20000
Package Weight
0.284
