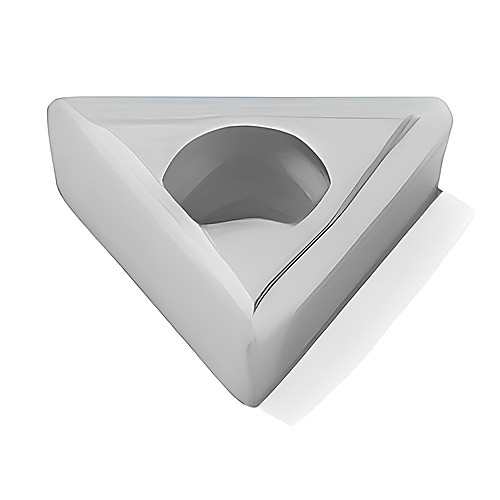

TCMT 21.51 F1(O) HX, 1/64″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, Uncoated, Turning Indexable Insert
Turning Insert; TCMT21.51-F1(O) HX ; 11 mm Length ; 1/4″ IC ; 1/64″ Corner Radius ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Grade | HX |
| Insert Style | TCMT | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 21.51 | Number of Cutting Edges | 3 |
| Cutting Edge Length (L) | 11 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | F1(O) |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | Triangle |
| Coating | Uncoated |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
