CNMG434-M3 GRADE TP2501

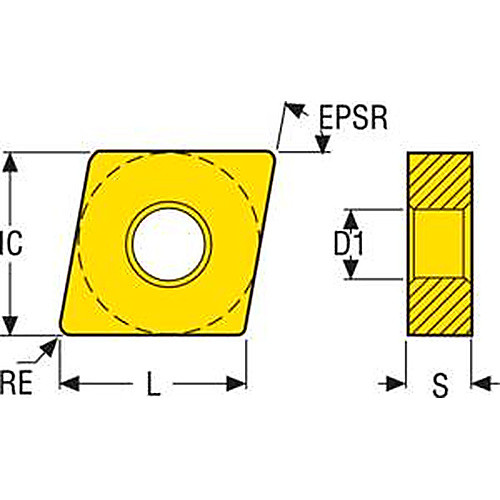

Turning Insert; 80 Diamond ; 0.5079″ Length × 1/2″ IC × 0.062″ Corner Radius ; TP2501 ; Carbide ; | Al2O3 | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Coating | | Al2O3 | TiCN | |
| Insert Style | CNMG | Grade | TP2501 |
| Corner Radius (RE) | 0.062″ | Tool Type | Turn Negative Inserts |
| Insert Size | 434 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.5079″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | M3 |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.018
