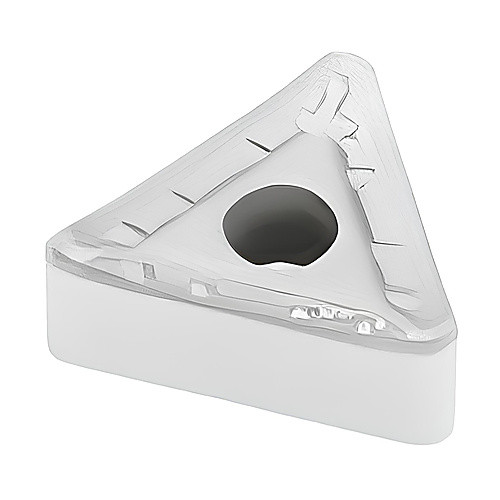

TNMM 433 R4 TP1501, 0.047″ Corner Radius, 0.187″ Thick, 1/2″ Inscribed Circle, TICN|Al2O3, Turning Indexable Insert
Turning Insert; TNMM433-R4 TP1501 ; 1/2″ IC ; 0.047″ Corner Radius ; Carbide ; Neutral ; TiCN+Al2O3
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Grade | TP1501 |
| Insert Style | TNMM | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.047″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 433 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 0.8661″ | Chip Breaker Type | R4 |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | Triangle |
| Cutting Edge Material | Carbide | Series/List # | TNMM 433-R4 |
| Coating | | Al2O3 | TiCN | |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.022
