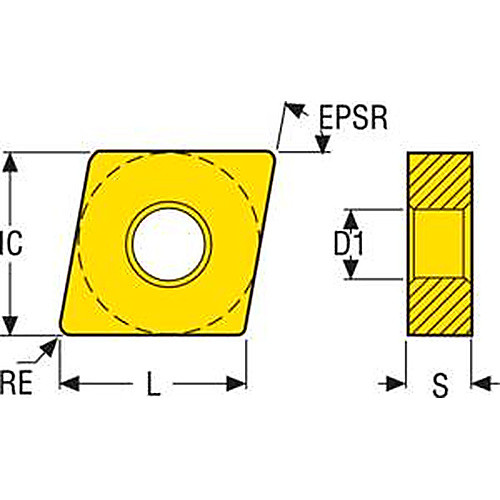

CNMG 542 M5 TP2501, 1/32″ Corner Radius, 1/4″ Thick, 5/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Diamond ; 16.1 mm Length × 5/8″ IC × 1/32″ Corner Radius ; TP2501 ; Carbide ; | TiCN | Al2O3 | Cr |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | TP2501 |
| Insert Style | CNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 542 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 16.1 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | M5 |
| Inscribed Circle Diameter (IC) | 5/8″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
| Coating | | TiCN | Al2O3 | Cr | | Series/List # | CNMG 542-G|Double-sided |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Length
4.50000
Package Width
2.30000
Package Height
.50000
Package Weight
0.042
