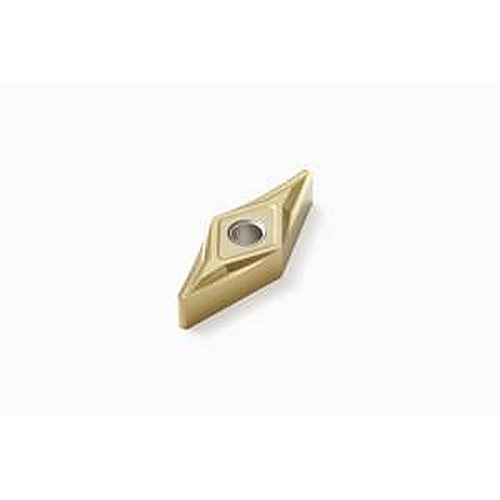

VNGM 331 M|Single-sided TS2000, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; VNGM331-MF1 TS2000 ; 16 mm Length ; 3/8″ IC ; 1/64″ Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TS2000 |
| Insert Style | VNGM | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 331 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 16 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | M|Single-sided |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 5 |
| Cutting Edge Material | Carbide | Shape | 35° Diamond |
| Coating | | TiN | TiAlN | | Series/List # | VNGM 331-M|Single-sided |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.022
