CCGW 21.51 L1 CBN20, 0.015″ Corner Radius, 0.094″ Thick, 1/4″ Inscribed Circle, Uncoated, Turning Indexable Insert
Turning Insert; 80 Diamond ; 0.2559″ Length × 1/4″ IC × 0.015″ Corner Radius ; CBN20 ; CBN ; Uncoated
Additional Tariff Surcharge of 8 %

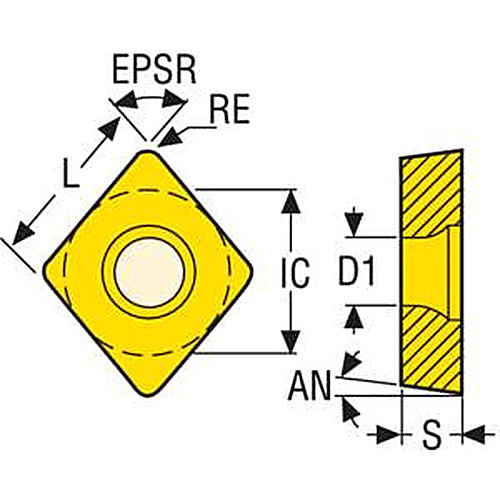

| Applicable Material | | Hard Materials | | Coating | Uncoated |
| Insert Style | CCGW | Grade | CBN20 |
| Corner Radius (RE) | 0.015″ | Tool Type | Turn Positive Inserts |
| Insert Size | 21.51 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.2559″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.094″ | Chip Breaker Type | L1 |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 1 |
| Cutting Edge Material | CBN | Shape | 80° Diamond |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
