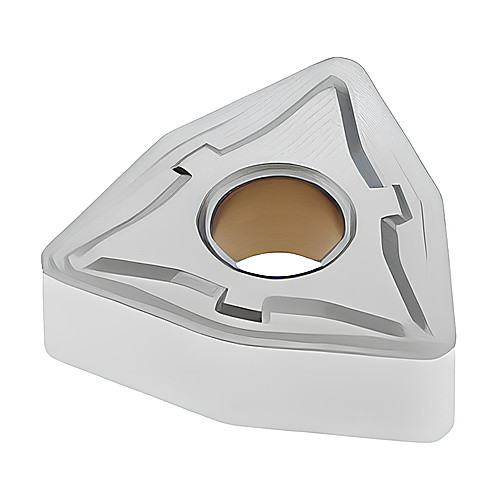

WNMG 332 M5 TP2501, 1/32″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Trigon ; 6.6 mm Length × 3/8″ IC × 1/32″ Corner Radius ; TP2501 ; Carbide ; | TiCN | Al2O3 | Cr |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | TP2501 |
| Insert Style | WNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 332 | Number of Cutting Edges | 6 |
| Cutting Edge Length (L) | 6.6 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | M5 |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | | TiCN | Al2O3 | Cr | | Series/List # | WNMG 332-Double-sided|G |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
