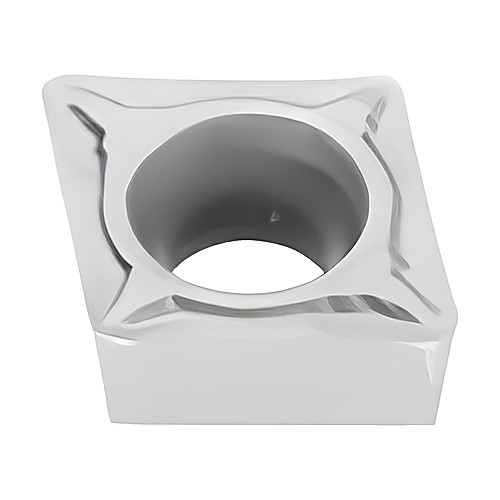

CCMT 32.50.5 F1 TP2501, 1/12″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; CCMT32.50.5-F1 TP2501 ; 9.7 mm Length ; 3/8″ IC ; 1/12″ Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | TP2501 |
| Insert Style | CCMT | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.0079″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32.50.5 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 9.7 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/32″ | Chip Breaker Type | F1 |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
| Coating | | TiCN | Al2O3 | Cr | | Series/List # | CCMT 32.50.5-T|Single-sided |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.007
