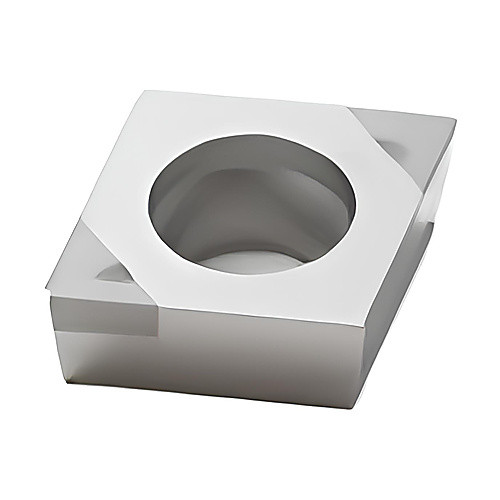

CCGW 32.52 W|None CBN010, 1/32″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; CCGW32.52S00420L1B CBN010 ; 9.7 mm Length ; 3/8″ IC ; 1/32″ Corner Radius ; PCBN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Hard Materials | | Grade | CBN010 |
| Insert Style | CCGW | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32.52 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 9.7 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/32″ | Chip Breaker Type | W|None |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 1 |
| Cutting Edge Material | PCBN | Shape | 80° Diamond |
| Coating | UNCOATED | Series/List # | CCGW 32.52-W|None |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.007
