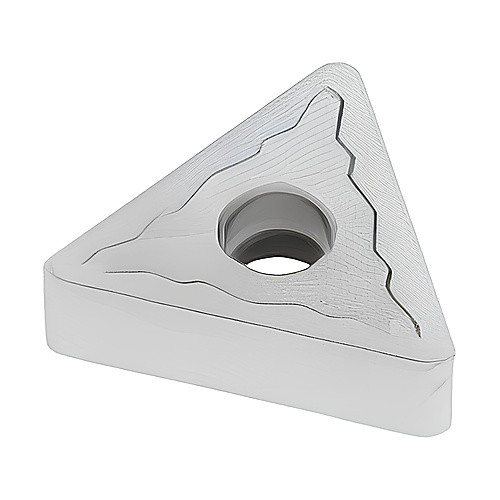

TNMG 544 MR7 TP2501, 1/16″ Corner Radius, 1/4″ Thick, 5/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; TNMG544-MR7 TP2501 ; 27.5 mm Length ; 5/8″ IC ; 1/16″ Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | TP2501 |
| Insert Style | TNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/16″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 544 | Number of Cutting Edges | 6 |
| Cutting Edge Length (L) | 27.5 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | MR7 |
| Inscribed Circle Diameter (IC) | 5/8″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | Triangle |
| Coating | | TiCN | Al2O3 | Cr | | Series/List # | TNMG 544-G|Double-sided |
Product Features
| Family Description | 0 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
0.055
