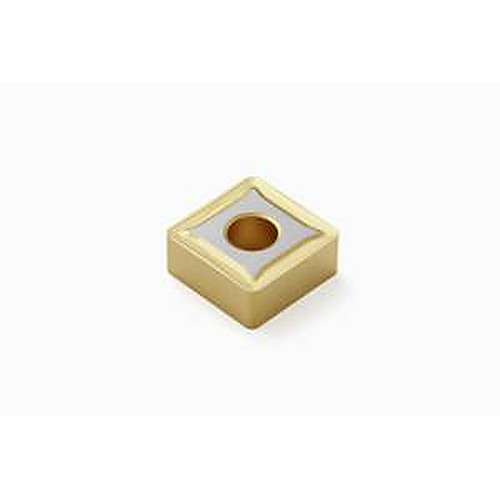

SNMG 544 M5 TP40, 0.062″ Corner Radius, 1/4″ Thick, 5/8″ Inscribed Circle, TiCN|TiN, Square, Turning Indexable Insert
Turning Insert; Square ; 5/8″ Length × 5/8″ IC × 0.062″ Corner Radius ; TP40 ; Carbide ; | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | | Coating | | TiN | TiCN | |
| Insert Style | SNMG | Grade | TP40 |
| Corner Radius (RE) | 0.062″ | Tool Type | Turn Negative Inserts |
| Insert Size | 544 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 5/8″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | M5 |
| Inscribed Circle Diameter (IC) | 5/8″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | Square |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.044
