CNMG643-MR7 GRADE TP0501

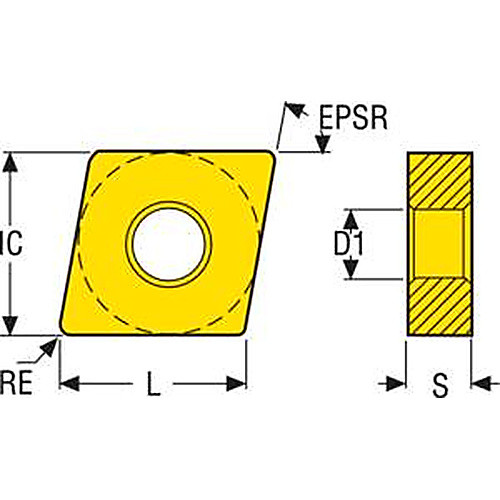

Turning Insert; 80 Diamond ; 19.3 mm Length × 3/4″ IC × 3/64″ Corner Radius ; TP0501 ; Carbide ; | TiCN | Al2O3 | Cr |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Grade | TP0501 |
| Insert Style | CNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 3/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 643 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 19.3 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | MR7 |
| Inscribed Circle Diameter (IC) | 3/4″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
| Coating | | TiCN | Al2O3 | Cr | |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.062
