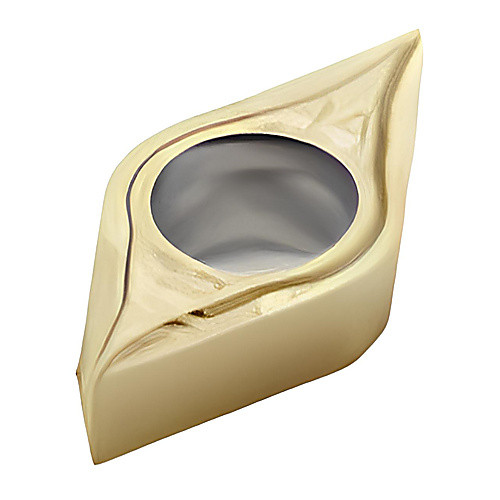

DCMT 21.50.5 F1 CP500, 1/12″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, Turning Indexable Insert
Turning Insert; DCMT 21.50.5-F1 CP500 ; 7.8 mm Length ; 1/4″ IC ; 1/12″ Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | CP500 |
| Insert Style | DCMT | Tool Type | Turning Insert |
| Corner Radius (RE) | 0.0079″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 21.50.5 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 7.8 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | F1 |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 55° Diamond |
| Coating | | TiN | TiAlN | | Series/List # | DCMT 21.50.5-Single-sided|T |
Product Features
| Family Description | 0 | Country of Origin | India |
Shipping Info
Package Weight
0.002
