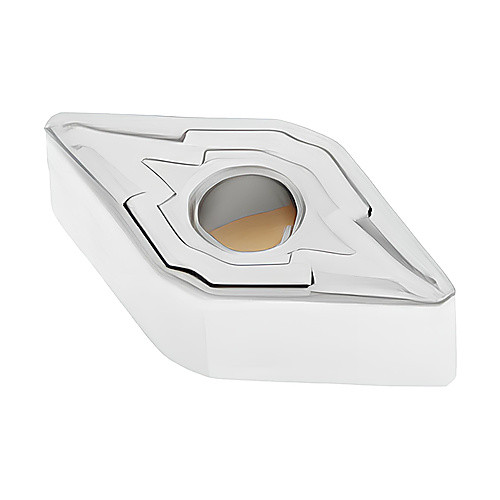

DNMG 443 M3 TP2501, 3/64″ Corner Radius, 1/4″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Turning Insert; DNMG443-M3 TP2501 ; 15.5 mm Length ; 1/2″ IC ; 3/64″ Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | TP2501 |
| Insert Style | DNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 3/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 443 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 15.5 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | M3 |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 55° Diamond |
| Coating | | TiCN | Al2O3 | Cr | | Series/List # | DNMG 443-Double-sided|G |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.033
