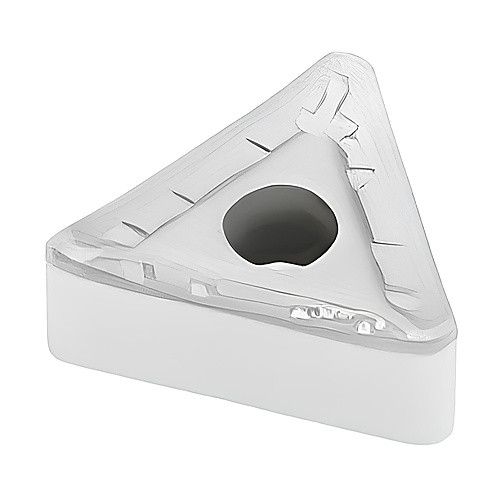

TNMM 332 R4 TP2501, 0.031″ Corner Radius, 0.187″ Thick, 3/8″ Inscribed Circle, TICN|Al2O3, Turning Indexable Insert
Turning Insert; Triangle ; 0.6496″ Length × 3/8″ IC × 0.031″ Corner Radius ; TP2501 ; Carbide ; | Al2O3 | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | TP2501 |
| Insert Style | TNMM | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.031″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 332 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 0.6496″ | Chip Breaker Type | R4 |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Triangle |
| Cutting Edge Material | Carbide | Series/List # | TNMM 332-R4 |
| Coating | | Al2O3 | TiCN | |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.013
